Overview

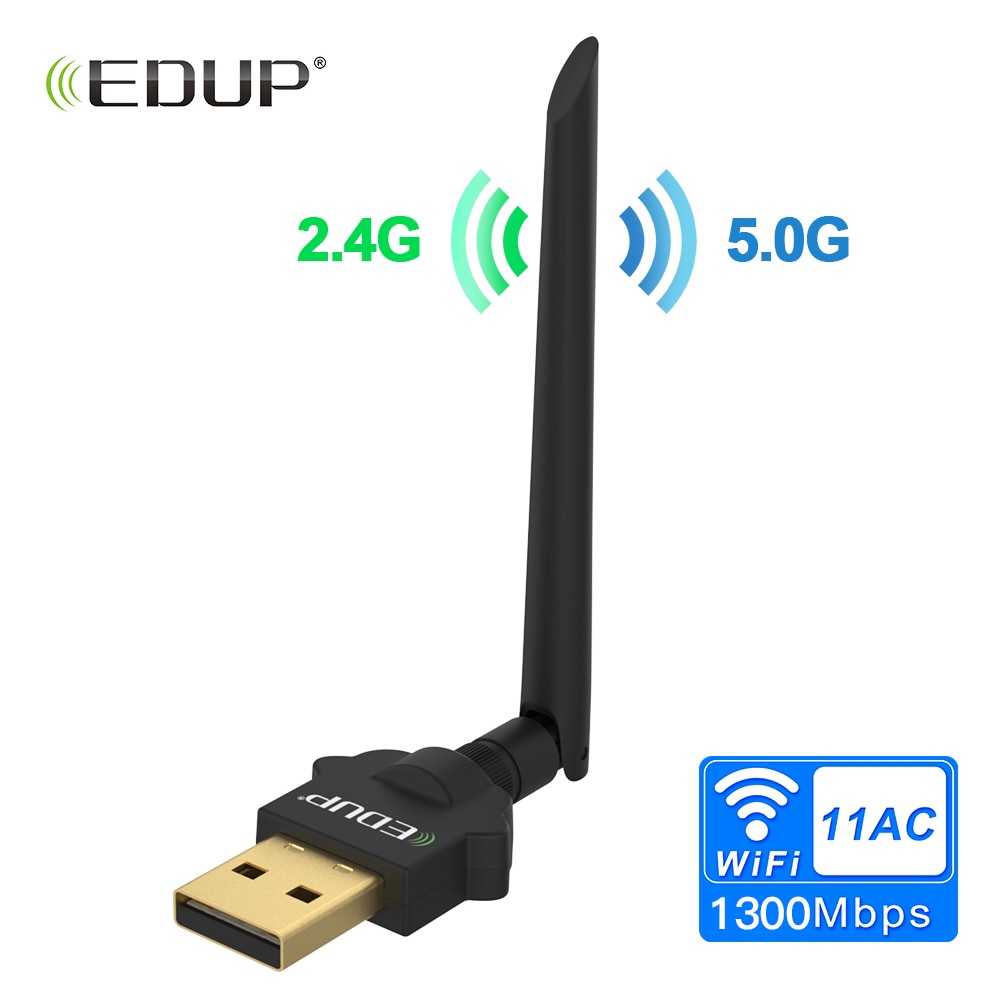

802.11ac USB wireless adapter using a Realtek 8812BU chipset providing a maximum transfer rate of 1200Mbps. This device is well supported on both the Beaglebones and Raspberry Pi’s, making it a versatile choice for hobbyists and professionals alike.
Du al-band operation offers resilience and speed: 2.4GHz up to 300Mbps and 5GHz up to 867Mbps, with frequencies 2.412–2.484 GHz and 5.15–5.825 GHz to cover common home and lab networks.
Key Features
- Chipset: Realtek 8812BU
- Antenna: external 2dB detachable omnidirectional antenna (repositionable)
- Frequency: 2.412–2.484 GHz; 5.15–5.825 GHz
- Transmission speeds: 2.4 GHz up to 300 Mbps; 5 GHz up to 867 Mbps
- Form factor: USB wireless adapter
Antenna and Placement

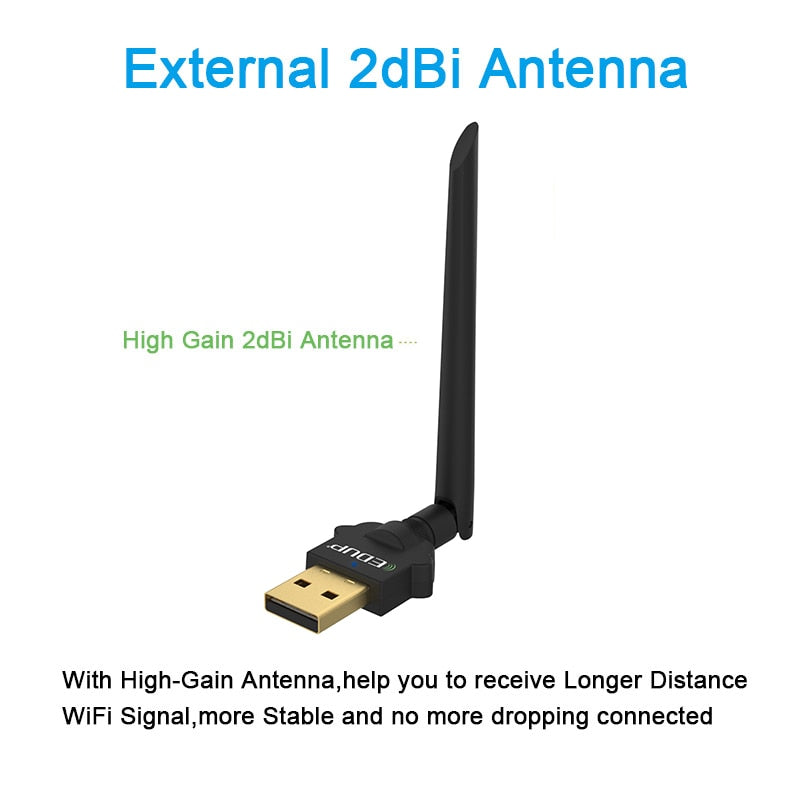

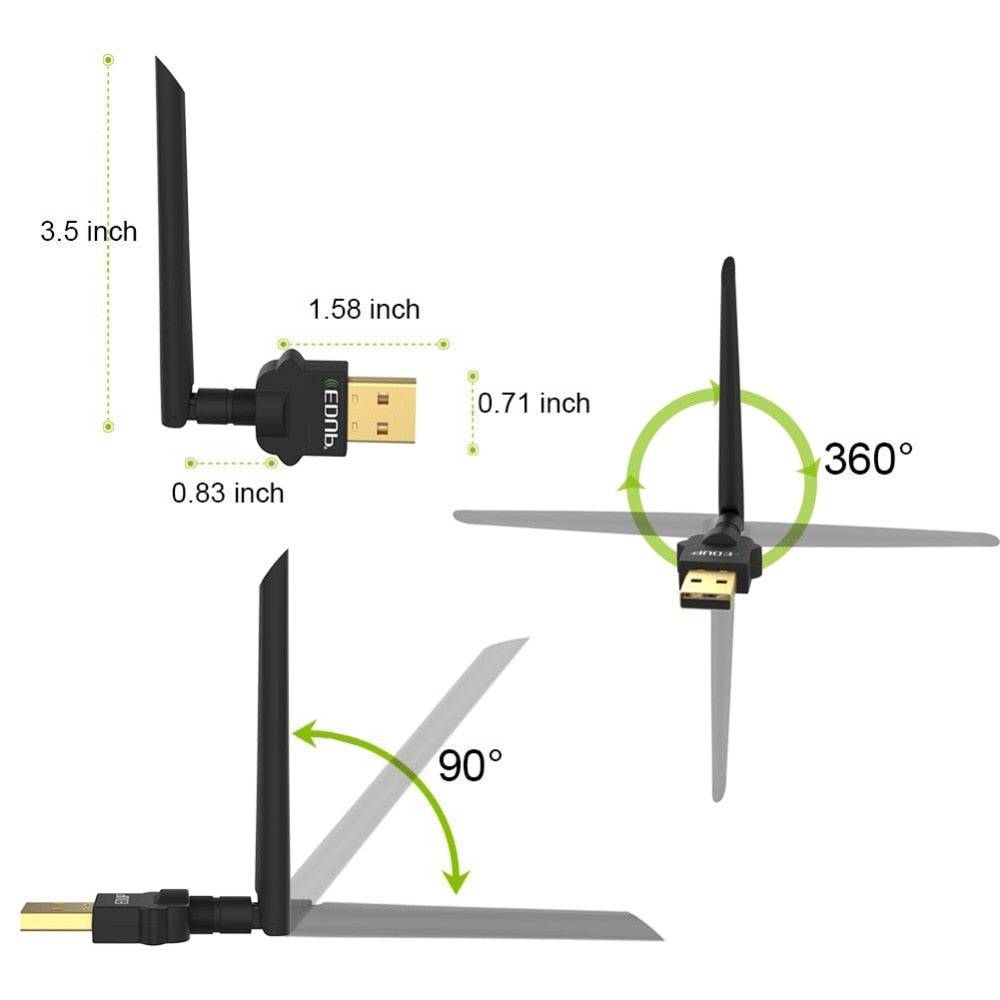

The external 2dB antenna is detachable and reposition-able, enabling you to optimize signal reception in tight spaces or RF-dense environments.
AP Mode and Compatibility
This model supports Access Point mode and can be configured to go into AP mode if no connection is established at boot, providing flexible networking options. It is well supported on both the Beaglebones and Raspberry Pi’s.
