Build your own professional-grade pixel controller with this complete DIY kit for the 17-port Baldrick Controller. Everything you need is included — just assemble and you're ready to run your show. Available in xConnect or Ray Wu pigtail ends, and 5V or 12V power supply options.

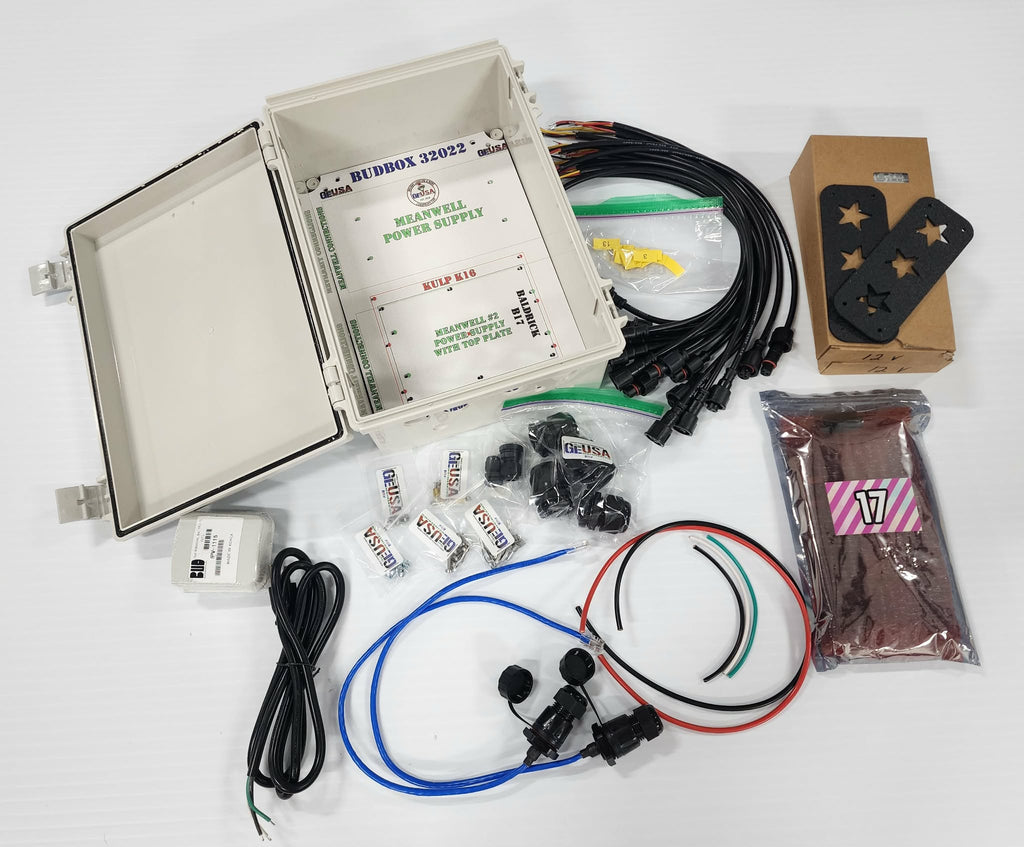

Kit Includes
- 1 – 17-port Baldrick Controller Board
- 1 – BUD 32022 Controller Box with mounting tabs (pre-cut holes)
- 1 – BUD 32022 Backer Plate + 4 screws for mounting to box
- 2 – Meanwell Power Supplies (5V or 12V)
- 17 – 18" Female Pigtails (xConnect or Ray Wu ends)
- 4 – PG25 glands (for ports 1–16)
- 1 – PG7 gland (for port 17)
- 1 – Power Cord
- 1 – PG9 Gland (for power cord)
- 2 – Passthrough Network Jacks with glands
- 4 – Mounting Screws (for power supply)
- 1 – Set of cable markers (1–17)
- 1 – Pair of power supply mounts with 8 screws
- 1 – IPV-1115 Vent
- 4 – 10-gauge wire pieces for controller connection
- 3 – Green, white & black wire (connects power supply to power supply)
- 2 – Red & black wire (connects power to controller board)
- 4 – Standoffs with nuts and screws (mounts board to backer plate)
- 18 – Ferrules for all power connections
