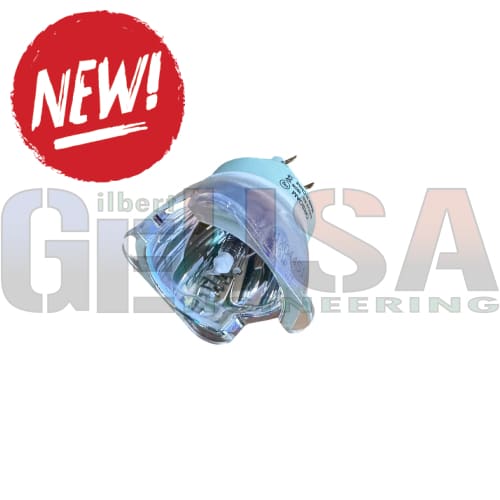

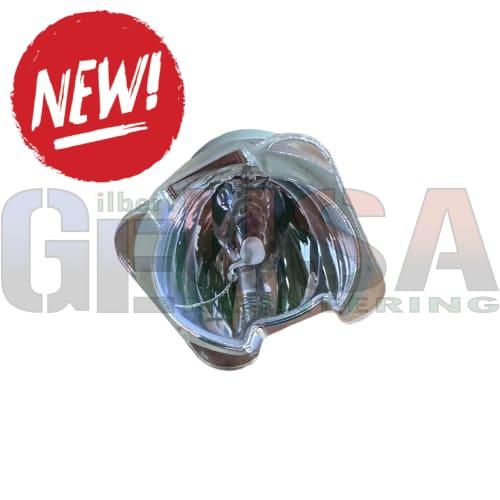

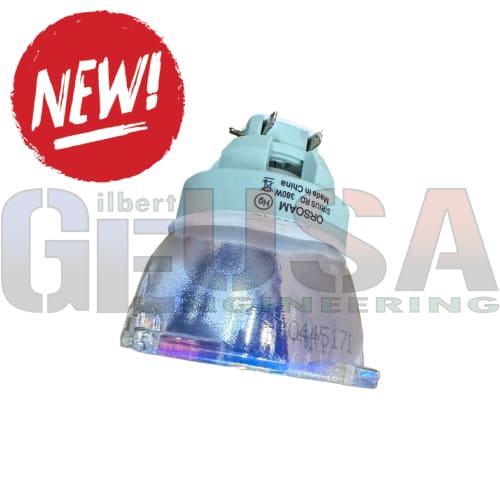

The Phoenix Ray Max 380W Replacement Bulb utilizes Osram Sirius HRI technology to deliver 20,000 lumens in professional moving head fixtures. This high-intensity discharge (HID) lamp offers consistent brightness and reliable operation for demanding environments such as concerts, nightclubs, and theater stages.
Technical specifications define a 381-watt nominal wattage operating at 70 volts and 5 amps. Light emission occurs at 7,700K color temperature with a Color Rendering Index (Ra) of 85. The design supports a burn-in duration of up to 2,500 hours while maintaining luminous flux consistency. Its optimized burner permits operation in any burning position to accommodate versatile mounting angles.
Physical Characteristics
-
Nominal Lifespan: 2,500 hours
-
Dimensions: 58.0 mm diameter x 72.0 mm length
-
Working Distance: 34.4 mm short arc
-
Weight: 130 grams
This unit suits architectural lighting, studios, and TV or film production needs where vivid colors are essential. Operators must ensure the bulb runs only inside enclosed casings with UV filters to protect against harmful radiation. Careful handling prevents mercury release if the glass housing breaks during maintenance.
