Pixabulb Strings

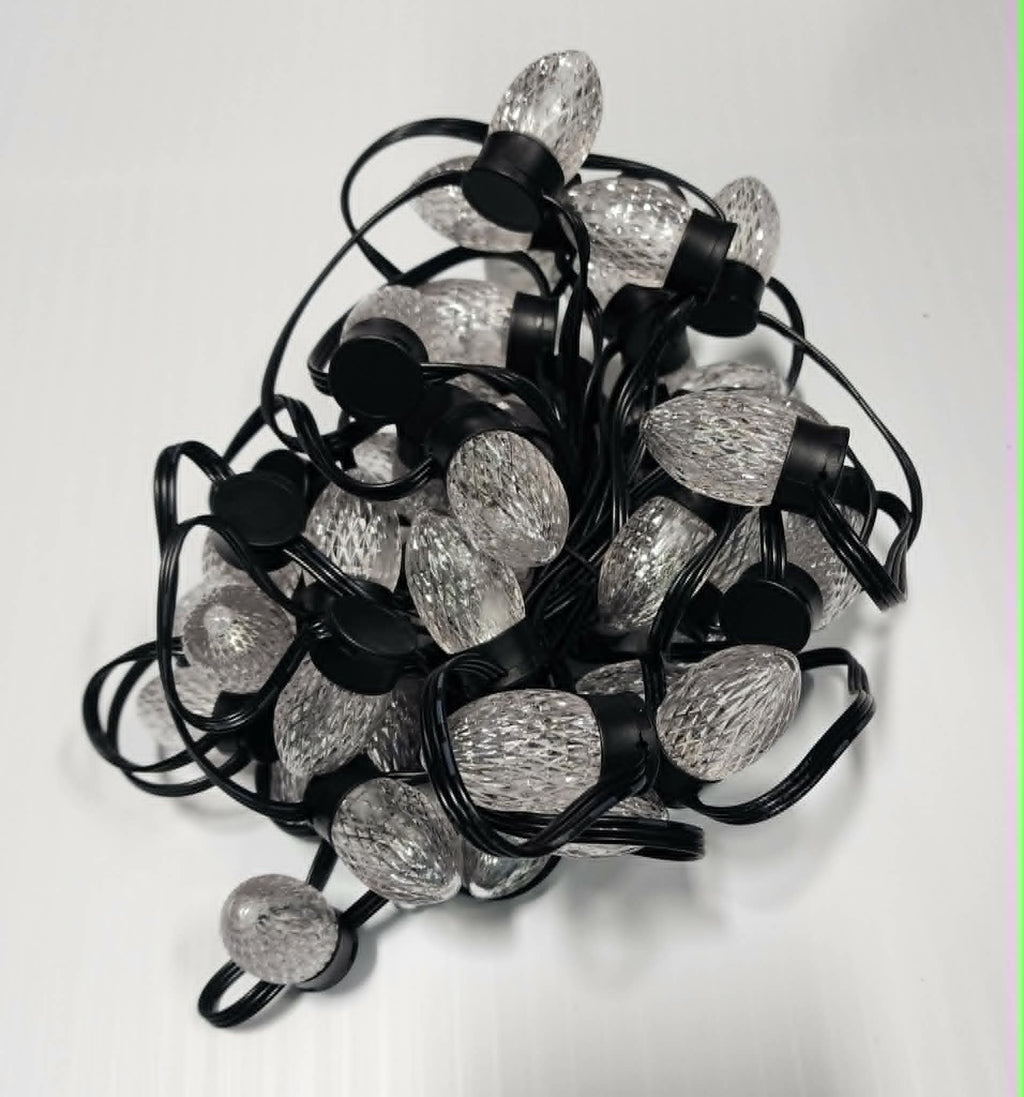

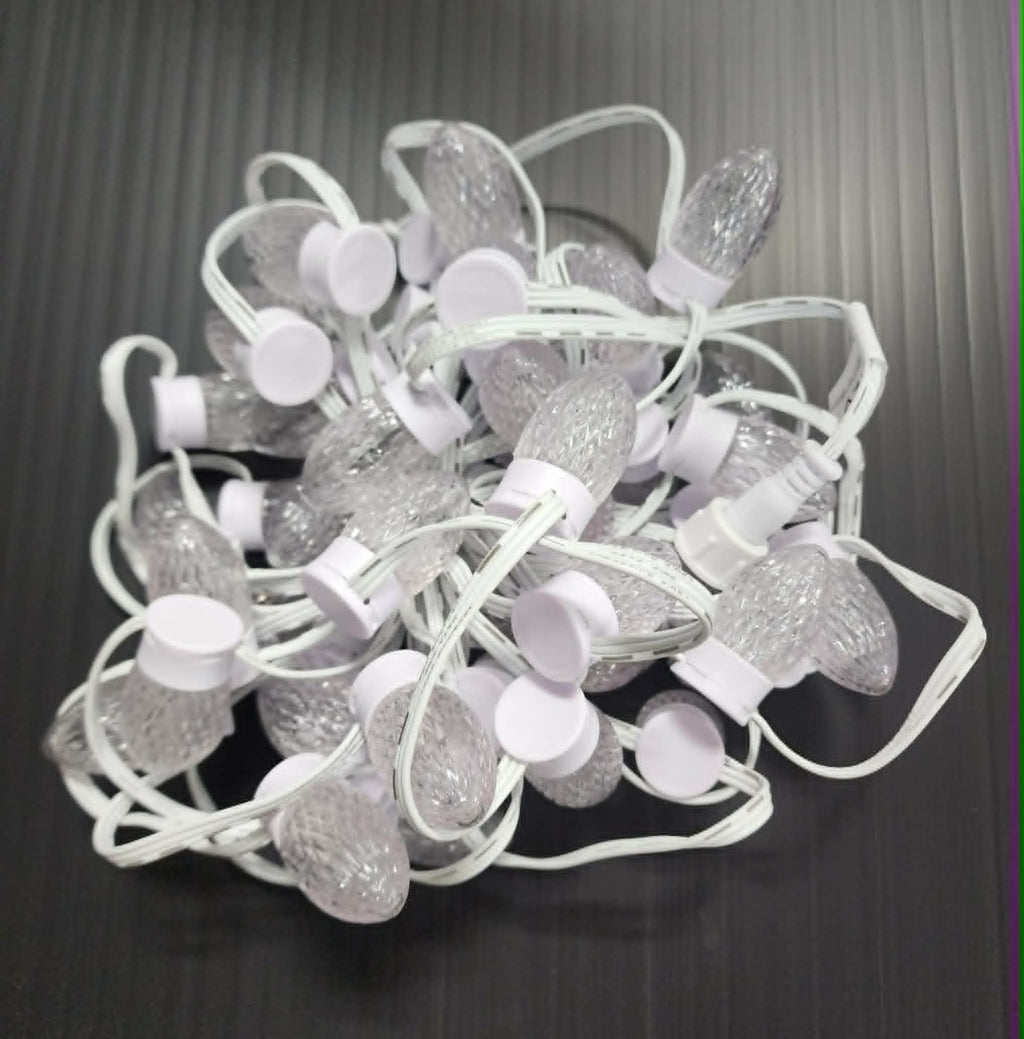

50nodes addressable RGB Pixabulb DC12V WS2811 LED Christmas pixel string
6 inch spacing
TEST all strings within 90 days of delivery & before installing in props. We will not exchange strings that are cut!
Specification:
|
Part No
|
ET-2811-12V-C9-50-IP68
|
|
Color
|
full rgb color,24bit,256 gray scale
|
|
LED Qty
|
1pcs 8mm round hat 0.24w rgb led
|
|
Input Volt
|
DC12V
|
|
Max current
|
66MA
|
|
Max Power
|
0.6W
|
|
Driver method
|
Constant current circuit
TTL signal,WS2811 IC
|
|
Dimension
|
24mm diameter |
|
Viewing angle
|
100-120degree
|
|
Protection Level
|
IP68
|
|
Certification
|
CE and RoHS
|
|
Standard connection
|
50pcs nodes per string
|
|
Standard wire length
|
150mm(6inches);Green/Black/White wire options
13.5mm/18.5mm/xconnect black waterproof male and female connectors (20cm each)
|
|
Housing
|
Green/Black/White
PVC
|
|
Fixed way
|
Facted white cover
|
|
Lifespan
|
50000 hours
|
|
Warranty
|
2years
|
|
Operation temperature
|
-40-50
|
|
Store temperature
|
-50-60
|
