Unleash the full potential of your LED lighting with the QuinLED-Dig-Quad, a single board designed for a dual purpose.
A Tale of Two Light Shows:
This board offers the best of both worlds, seamlessly switching between permanent installations and dynamic holiday extravaganzas.
For Permanent Lighting: Pair the Dig-Quad with the user-friendly WLED software to create stunning, year-round accent lighting. Control your home's ambiance from your phone with endless custom colors and effects.
For Dynamic Holiday Displays: Switch to xLights to choreograph jaw-dropping holiday light shows. The board’s four high-current outputs allow you to run thousands of LEDs and sync them to music, creating professional-grade displays.
Description for Shopify Page: QuinLED-Dig-Quad Board
Unleash the full potential of your LED lighting with the QuinLED-Dig-Quad, a single board designed for a dual purpose.
A Tale of Two Light Shows:
This board offers the best of both worlds, seamlessly switching between permanent installations and dynamic holiday extravaganzas.
For Permanent Lighting: Pair the Dig-Quad with the user-friendly WLED software to create stunning, year-round accent lighting. Control your home's ambiance from your phone with endless custom colors and effects.1
For Dynamic Holiday Displays: Switch to xLights to choreograph jaw-dropping holiday light shows. The board’s four high-current outputs allow you to run thousands of LEDs and sync them to music, creating professional-grade displays.
With the QuinLED-Dig-Quad, you don’t have to choose between a beautiful everyday setup and an unforgettable holiday spectacle. Get the flexibility you need for all your lighting projects in one powerful, versatile board.
Power Handling:
Continuous: Up to 30A total
Peak:Up to 50A total
Per Terminal/Fuse: Up to 10A continuous
Voltage Compatibility:
5V, 12V, and 24V LED strips
Safety Features:
5 onboard 5A fuses
Reverse polarity protection
Connectivity:
Wi-Fi or Ethernet available
Additional Features:
Onboard DS18B20 temperature sensor
Multiple GPIO pins for buttons, sensors, and other external devices
What you are getting:

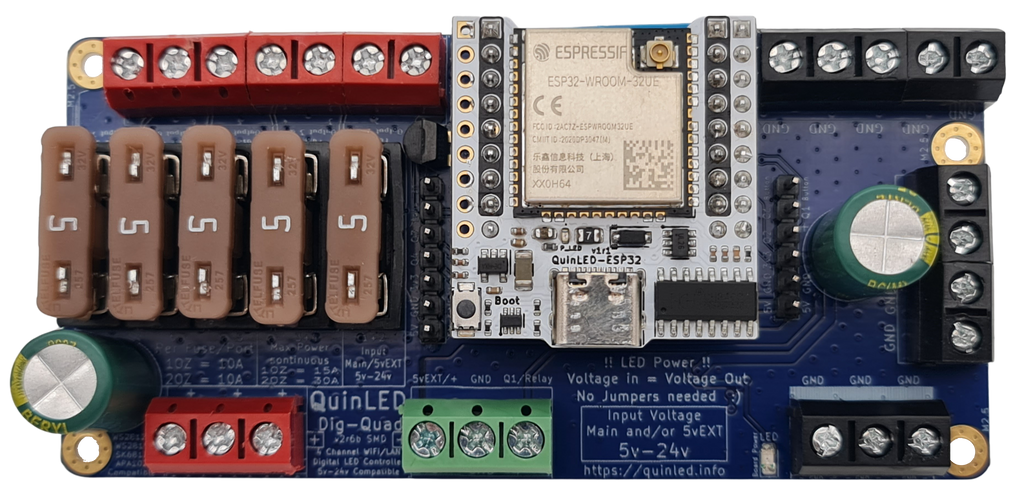

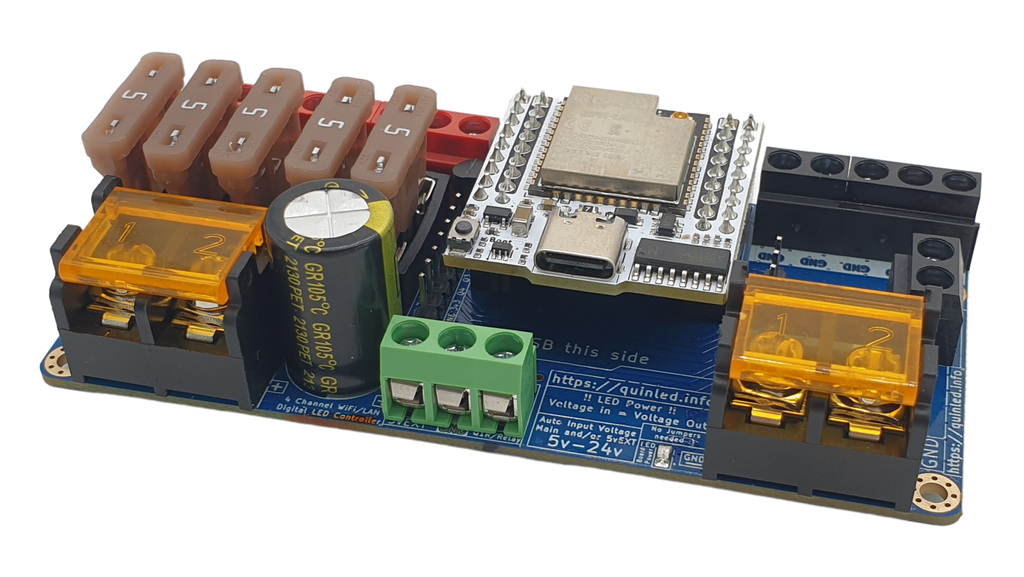

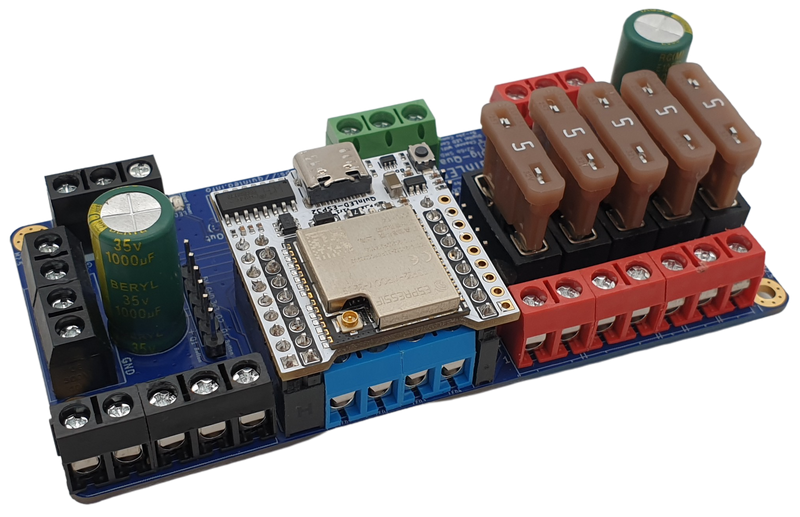

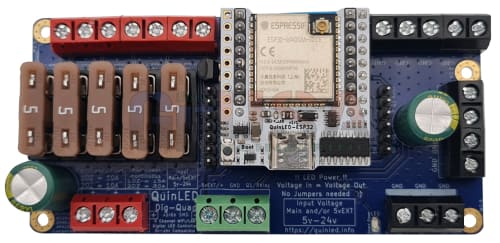

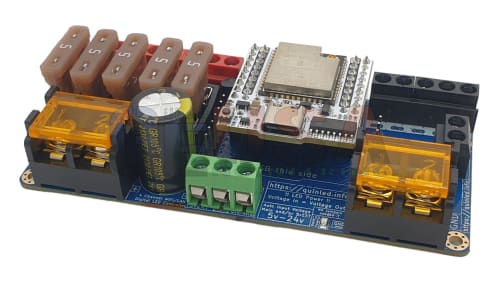

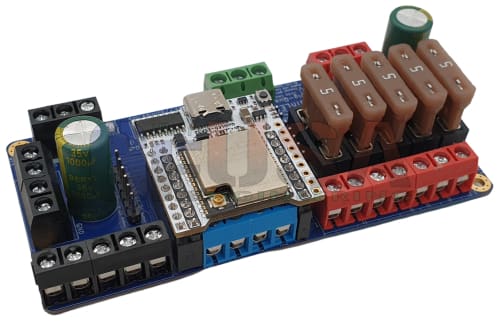

Fully Assembled QuinLED-Dig-Quad v3.5r3 board
PCB Color: Dark Blue
ENIG (Gold) plated
2OZ copper (Tested to 30A continuous)
Includes 5x 5A Fuse
Includes 5v/12v and 5vEXT capability
Includes DS18B20 Temperature sensor
Includes Custom QuinLED-ESP32 Top Board (with headers soldered)
Has onboard USB-C port for programming any firmware you like!
Pre-Installed with current WLED version out of the box!
Does NOT include USB-C Cable (for flashing firmware)
Enhanced pre-assembled version features:
Comes with QuinLED-ESP32 microcontroller board
Choice between 3 versions
Board Antenna
External Antenna

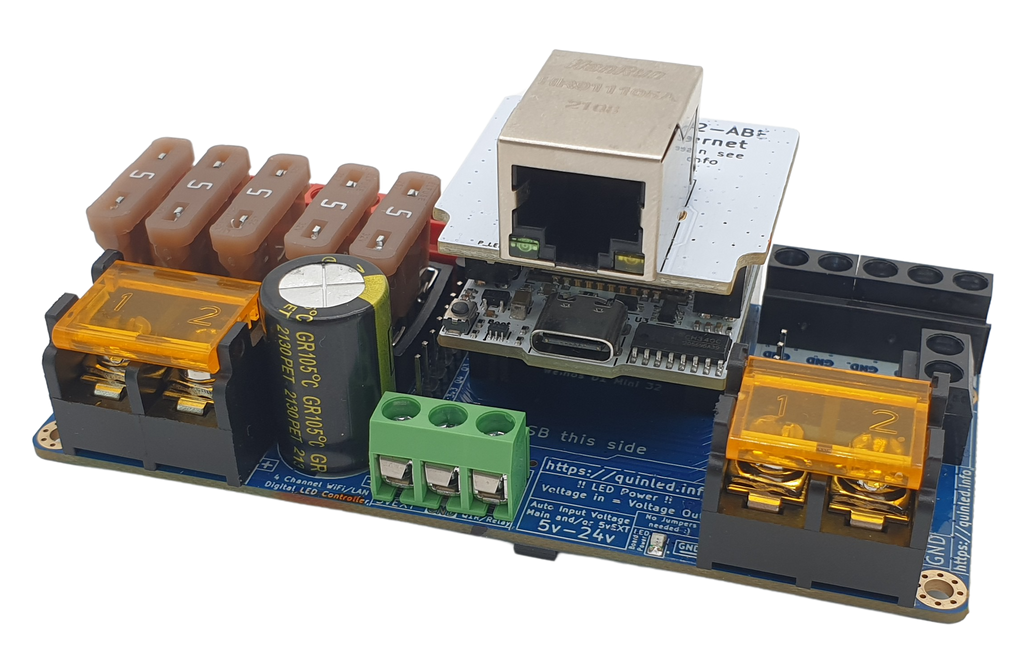

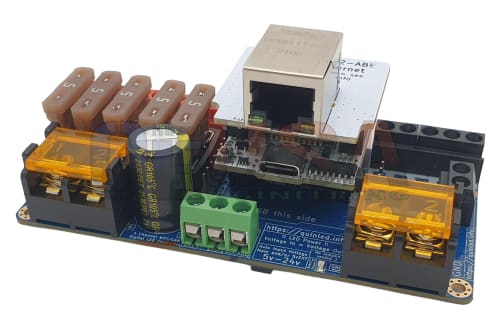

Board Antenna + Ethernet (when available)
Custom DC-DC circuit onboard
Auto 5v-24v voltage input circuit (no more jumper!)
No jumpers again, fully auto selected
* Your power supply voltage still needs to match LED voltage!
Enhanced LED data voltage at an always steady 5.12v, no matter the input voltage
Auto 5vEXT with 5v-24v compatibility
Green 5vEXT input terminals and special Q1R 5.1v relay trigger pin!
Because of the custom DC-DC circuit on the board 5vEXT now accepts 5v-24v input for standby power
